mch ceramic plate heater/MCH heating chip

  • 10 - 99 Pieces
    $2.00
  • 100 - 999 Pieces
    $1.90
  • 1000 - 4999 Pieces
    $1.70
  • >=5000 Pieces
    $1.50
Model Number:
tr-mch
Power:
200w
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 13 13 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces)
Customized voltage, power, size. (Min. Order: 10 Pieces) Less
Samples:
$5.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Energy & Mining, Food & Beverage Shops, Advertising Company
Brand Name:
tuamrui
Dimension(L*W*H):
100x15x1.3
Weight:
0.05
Voltage:
220v
Certification:
ce, CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Telephone and video calling technology services
Working Temperature Range:
500
Product name:
mch ceramic plate heater
Voltages available:
3.7v-230v
Wattage:
10w-3000w
MOQ:
1 Piece
Application:
Household Appliance
Function:
Straight Hair
Shape:
Rectangle and 1 circle
Max Temperature:
600°C
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packaging Details Carton box or wooden box for Electric Heater
Port
shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 13 13 15 To be negotiated
Detailed Images
Product Description

1. Introduction

MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. Mch refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Alias: mch fever film, mch ceramic fever film, metal ceramic fever film, alumina Ceramic fever film, htcc ceramic heating element, htcc ceramic heating element heating component.
2. Application Areas
Widely used in daily life, agricultural technology, communication, environmental protection, industrial drying equipment, electric Bonding liquid heater, hairdresser (straight) for acid and Acid-Base liquids) air conditioning, air conditioning, air conditioning and Water Heater quick heating device, multi-functional microwave, oven, oven, dryer, etc, dryer, air conditioner fan, air pump, hot water pot, coffee pot, medical, infrared li liao yi, venous injection heater, etc.

3. Main raw materials
Substrate: White multi-layer alumina ceramics,.-Al2O3 content not less than 95%
Lead: In a ф 0. 5mm of Nickel wire.
Casing, tape: Teflon, high temperature resistance to high temperature
Resistance: high temperature materials such as tungsten, etc.
Product thickness: 0.7 ~ 2.0. Customizable
Use voltage: 3.7 V, 4.5 V, 5 V, 7 V, 6 V, 9 V, 12 V 24 V, 36 V, 110 V, 220 V, 380 V can be customized.
Resistance Selection: 0.3 ~ 1500 ohm, according to voltage, chip size power and customer demand selection.

4. performance and characteristics
1. Simple structure, shape, size and resistance power can be produced according to customer needs;
2. Thermal uniform consistency, high power density: 45 W/cm2;
3, resistance-temperature change linear, can control resistance or voltage easily control temperature;
4. heating up fast, temperature compensation fast;
500 W power started 20 s temperature up to 600 ℃; its component rated power start 10 s temperature can be up to 200 ℃;
5. high heating temperature, up to 700 ℃;
6, high thermal efficiency, uniform heating, energy saving (unit thermal power consumption ratio of 20 ~ 30 );
7, unknown fire, surface safety is not charged.
Good insulation performance: surface safety is not charged, insulation performance is good: can withstand 4500 V/1 s voltage test, no breakdown, leakage current <0. 5mA;
8, long life, long time use without power attenuation;
9.eat-resistant tablets and other corrosive substances;
10. Environmental protection: harmful substances such as lead, cadmium, mercury, chromium, more, more, etc., it is fully compatible with the environmental requirements of the EU.

MCH rectangular heating plate
serial
specific
voltage
(v)
resistance
(Ω)
 length
(mm)
width
(mm)
thickness
(mm)
1
10*10*1.3/2.0
12/24/48
9/10/13/45
10
10
1.3
2
15*15*1.3/2.0
24/48/72/110
90-100
15
15
1.3
3
20*10*1.3/2.0
12/24
5/10/15/20/350
20
10
1.3
4
20*15*1.3/2.0
12/24/36
17-19
20
15
1.3
5
25*10*1.3
12/24/220v
40/50/370
25
10
1.3
6
30*25*1.3/2.0
12/24/120/220
20/25/30/35/110/310-350
30
25
1.3
7
35*7*1.3/2.0
24
13
35
7
1.3
8
40*40*1.3/2.0
110/220
200
40
40
2.0
9
48*26*2.0
220
350
48
26
2.0
10
50*15*1.5/2
12/24/50/110/220
5/18/95
50
15
1.5
11
50*20*1.3/2.0
220
240
50
20
2.0
12
50*30*1.5
110/220
55/
50
30
1.5
13
50*50*1.3/2.0
110
50
50
50
2
14
70*7*1.3
110/220
60/80/110/140/150/180
70
7
1.3
15
70*10*1.3/2.0
3/12/110/220
2/6/10/40/60/80/110/120/140/150/180
70
10
1.3
16
70*15*1.3/2.0
110/220
50/100/170/180/200
70
15
1.3
17
75*7*1.3/2.0
110
80
75
7
1.3
18
83*50*1.3/2.0
220
60
83
50
2.0
19
100*15*1.3/2.0
120/220
125-155/550-750
100
15
1.3
20
100*16*1.3/2.0
12/24
16-20
100
16
2.0
MCH round heater






serial
specific
voltage
(v)

resistance
(Ω)

diameter
(mm)
 inner diameter(mm)
thickness
(mm)

1
10*0.7/1.3
3.7
0.5-0.8
10
-
0.7
2
12*0.7/1.3
3.7/6
2.4-3
12
-
0.7
3
14*1.3/2.0
8/12
1.3-1.9
14
-
1.3
4
14*4*1.3/2.0
12/24/36
2-3
14
4
1.3
5
14*6.5*1.3/2.0
5-7
2-3
14
6.5
1.3
6
14*7*1.3/2.0
3.7/6/12/24
2.1-2.7/9-10
14
7
1.3
7
15.8*1.3/2.0
3.7/7.4/12/24
1.8-1.3
15.8
-
1.3
8
20*8*1.3/2.0
12/24
30-35
20
8
1.3
9
23*4*1.3/2.0
24/36
30-35
23
4
1.3
10
24*1.3
3.7/6/12/24/
1-2/3-6/5-7/8-9/10-12/18-20/28-33
24
-
1.3
11
26*1.3/2.0
12/24
13-15/16-30
26
-
1.3
12
28*17*1.3/2.0
6/12/24
2.6-3.1
28
17
1.3
13
30*1.3/2.0
220
155
30
-
1.3
14
30*6*1.3/2.0
12/24
1.2-1.6
30
6
1.3
15
32*12*1.3/2.0
110
100-120
32
12
1.3
16
35*1.3/2.0
12/24
1.3-1.8
35
-
1.3
17
38*5*1.3/2.0
12/24
6-7
38
5
1.3
18
40*1.3*2.0
12/24
4-6
40
-
1.3
19
40*10*1.3/2.0
3.7/6/12
1.2/5-8
40
10
1.3
20
45*20*1.3/2.0
3.7/7.4/12
0.4-0.6
45
20
1.3
21
45*30*1.3/2.0
110
38-43
45
30
2.0
22
48*12*1.3/2.0
12/24
12-16
48
12
2.0
23
48*21*1.5/2.0
6/12/24
2.8-3.1
48
21
1.5
24
48*26*1.3/2.0
110/220
240-300
48
26
2
25
48*1.3/2
12/24/36/50
5/12-13
48
-
1.3/2
26
52*1.3
12/24
2-6
52
-
2
27
55*37*1.3/2.0
12/24
20-23
55
37
2
MCH heating tube/heating rod






serial
specific
voltage
(v)
resistance
(Ω)
diameter

(mm)
 inner diameter
(mm)
length
(mm)
1
3*19
8/12
2-2.5
3
-
19
2
3.7*52
8/12
1.8-2.5
3.7
-
52
3
3.7*57
12/24
3.8-4.5
3.7
-
57
4
3.8*25
24
3.4-4.2
3.8
-
25
5
3.8*60
220
150-170
3.8
-
60
6
4.1*70
220
370-430
4.1
-
70
7
4.5*74
220/230/240
340-380
4.5
-
74
8
4.8*40
220
110-130
4.8
-
40
9
5.5*64
220
60-70
5.5
-
64
10
5.5*70
110
50-70
5.5
-
70
11
5.5*79
220
70-90
5.5
-
7.9
12
8*90
220
85-105
8
-
90
13
5.6*2.3*9
12
3.5-4.6
5.6
2.3
9
14
5.6*2.3*44
220
16.-180
5.6
2.3
44
15
6.5*2.5*70
220
100-120
6.5
2.5
70
16
8*2.5*80
220
45-60
8
2.5
80
17
9.5*6.5*38
220
150-170
9.5
6.5
38
18
11.5*6.5*107
220
28-36
11.5
6.5
107
19
11.5*6.5*115
220
19
11.5
6.5
115
20
12*8*59
220
120-140
12
8
59
21
13*9*61
220
105-125
13
9
61
22
20*17*15
12/15
7-8
20
17
15
23
21*17*35
220
230-250
21
17
35
MCH heater can be manufactured as required.Voltage, power, size customization.


Packaging and delivery

• Packaging Details Carton box or wooden box for Electric Heating Heater

• Delivery Time 10 days for Electric  Heater .
Manufacturing Technique

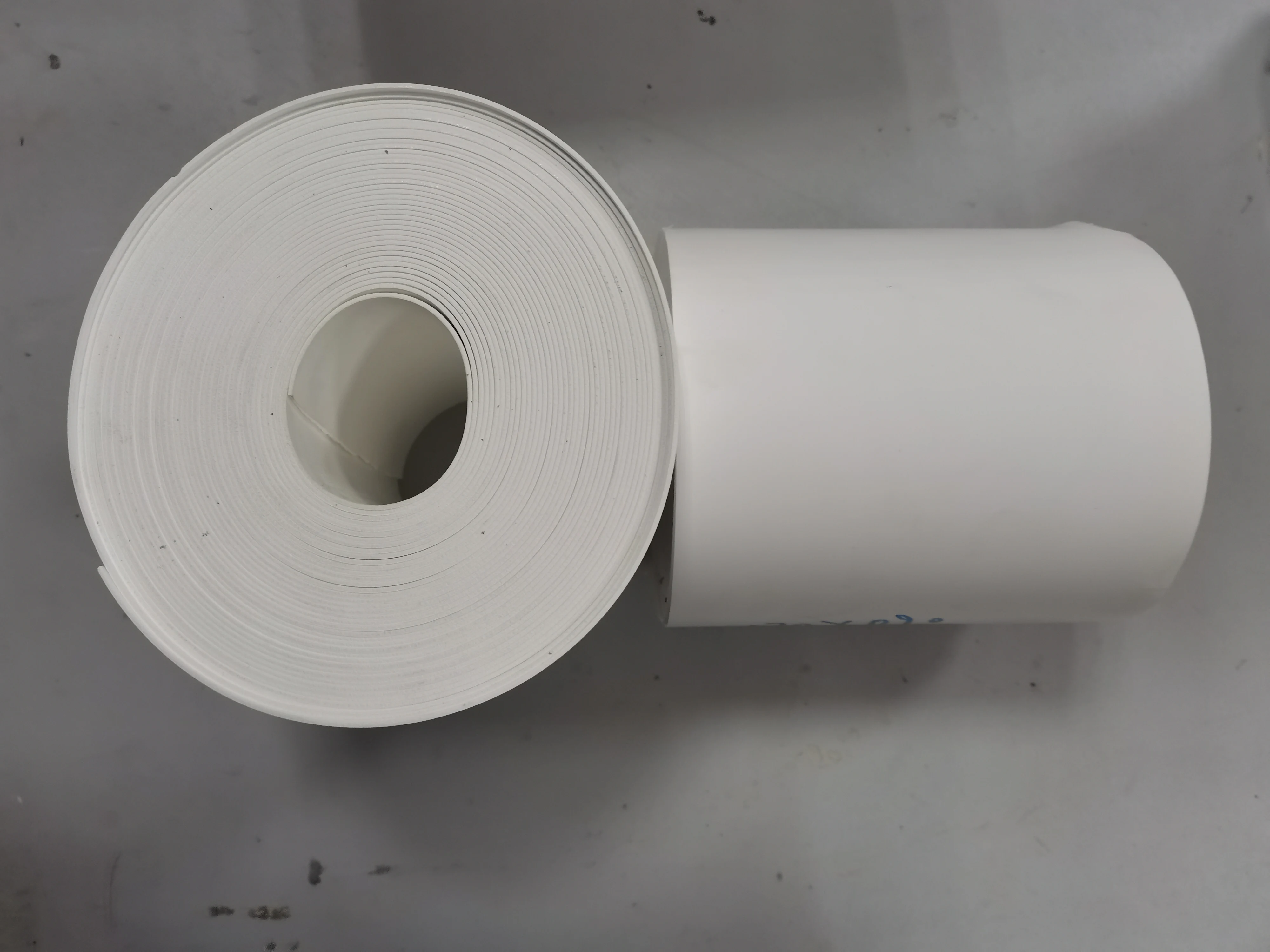

Ceramic element

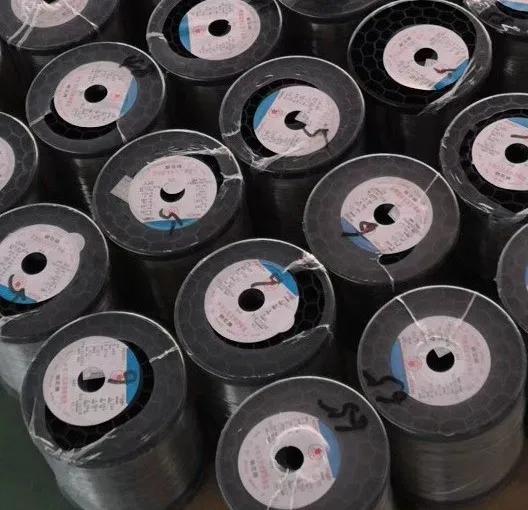

Heating wire

Silver electrode

Ptfe tube

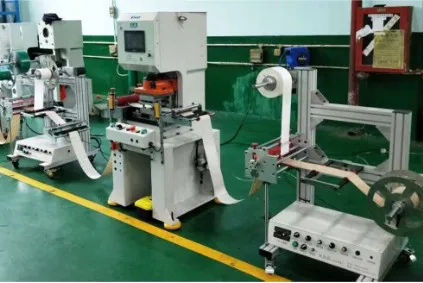

press

Screen printing machine

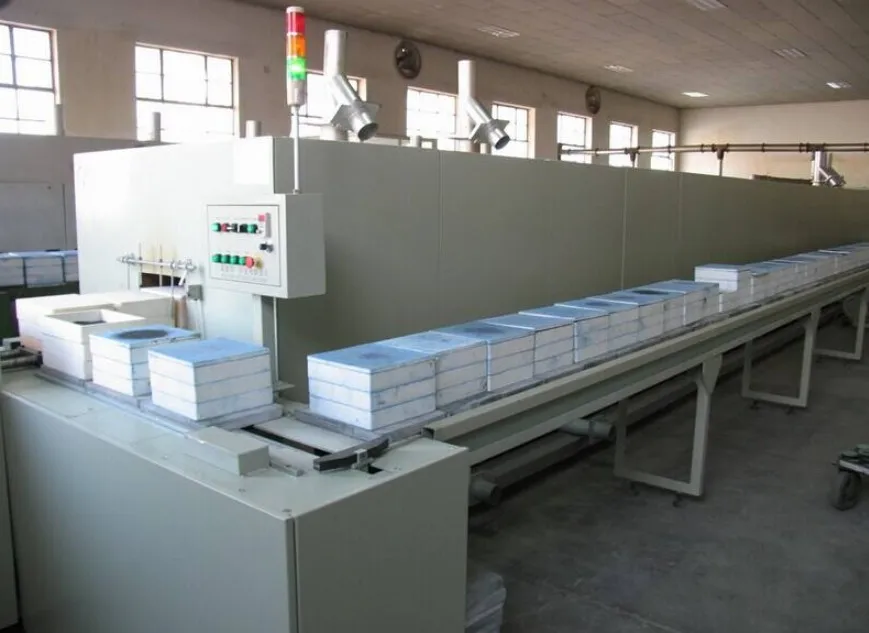

Electric furnace.

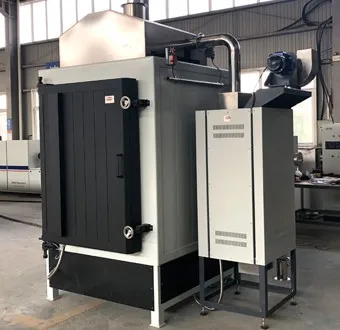

High temperature furnace

Why Choose Us

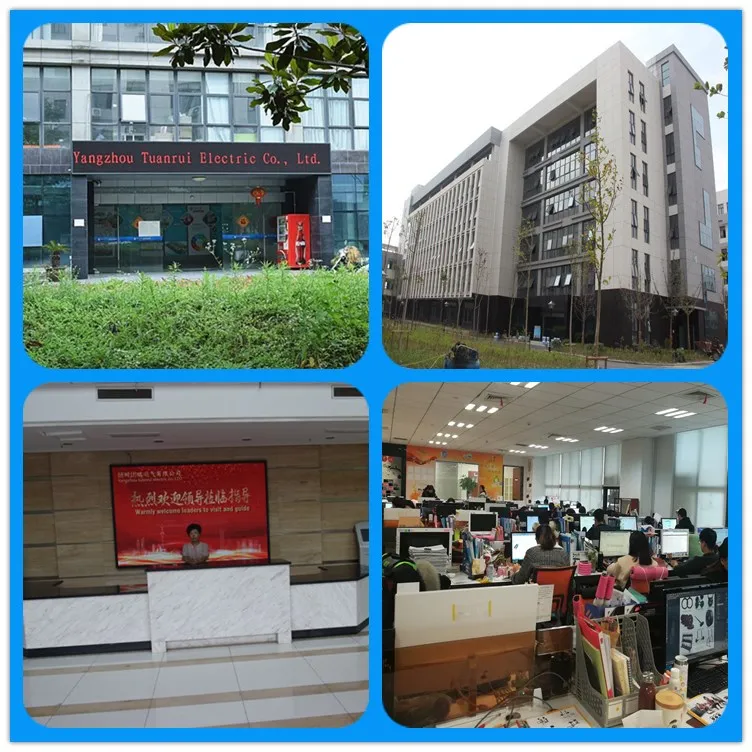

Our Company

      Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.
Exhibition and certification
FAQ

Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.

Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.

Still have question?
Click below" send " pls,best price is ready
for you!

Related Products

  MCH  Heater

PTC Heater

Mica Heater

Ceramic heating ring

Single end heating tube

Liquid heating tube

Air heating tube

Cast aluminum heater

Cast copper heater

Electric film

Silicone rubber heater

Aluminum foil heater

Ceramic fiber heater

Quartz heating tube

Spring heating ring

Temperature Sensor

Electromagnetic controller

Slide line

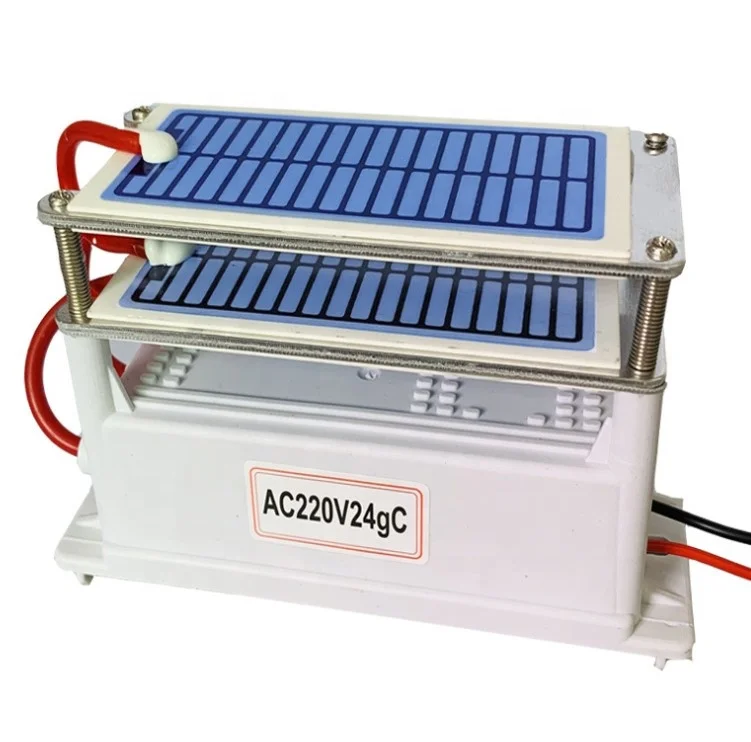

Ozone slice generator

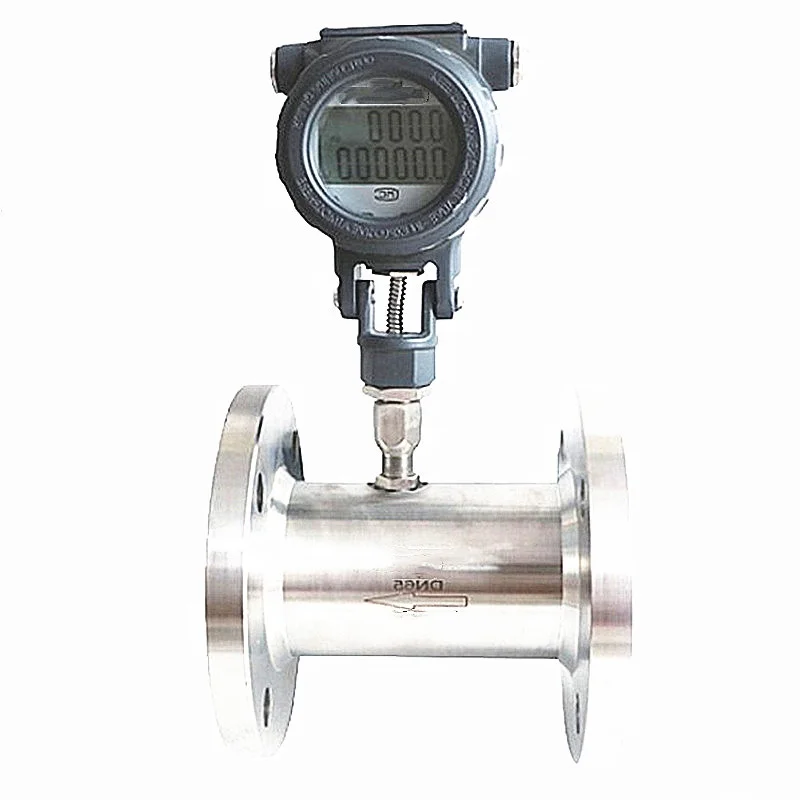

Flow meter

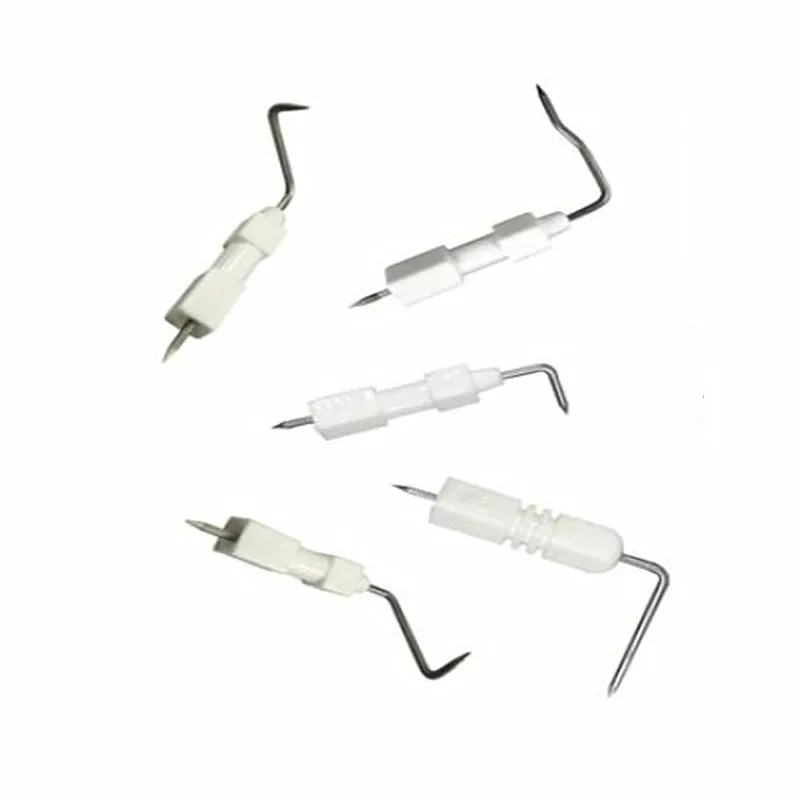

Ignition needle

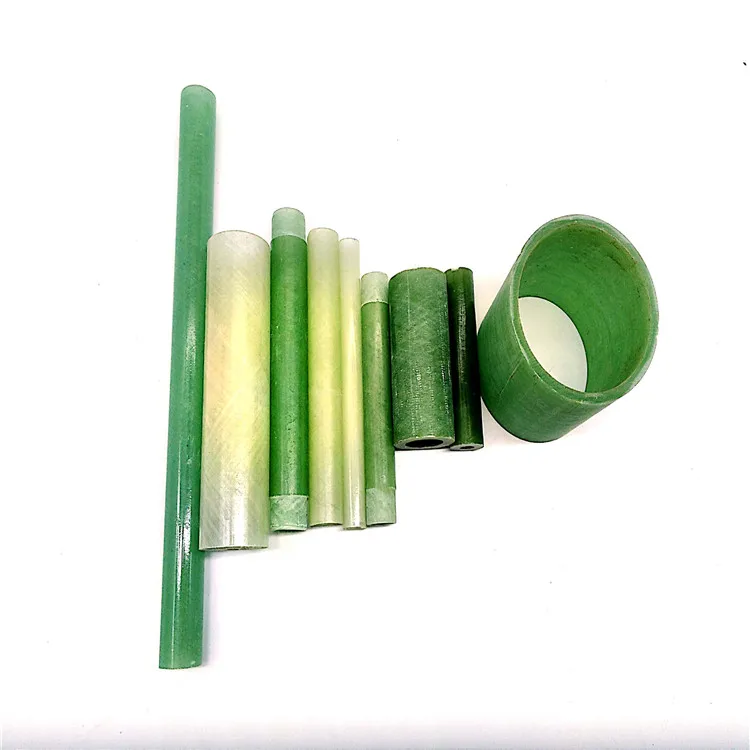

Insulated tube/rod

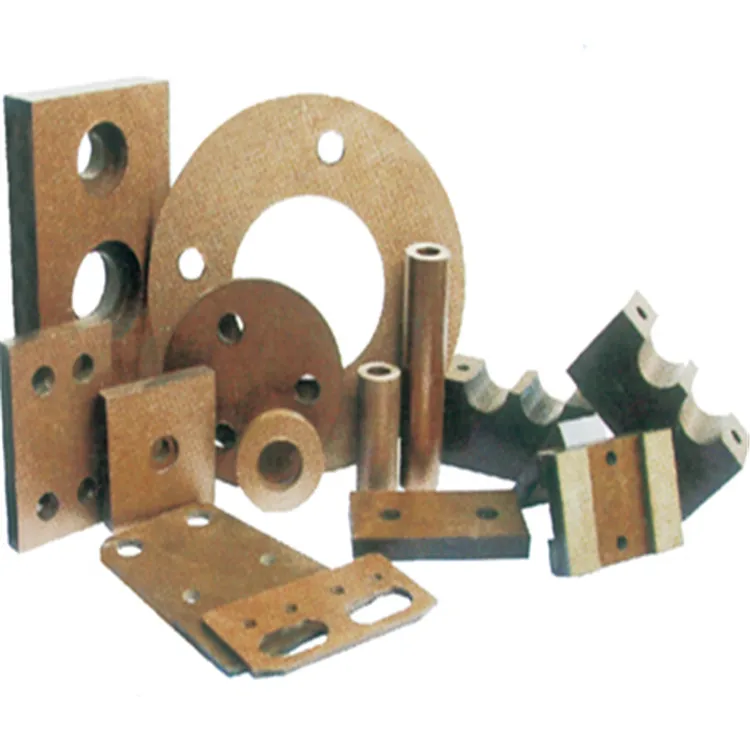

Mica insulated tube/rod/plate
